6 Way Illuminated Blue Rocker Switch Panel

6 Way Illuminated Blue Rocker Switch Panel

  • CAT.NO: SZ1925
6 Way Illuminated Blue Rocker Switch Panel
6 Way Illuminated Blue Rocker Switch Panel
$98.95

Bulk Pricing

Available variants (3)

Store

Choose a store for stock availability
6 Way Illuminated Blue Rocker Switch Panel
$98.95
Straight forward installation and wiring, with just four connections - everything else is pre-wired! Then all you need to do is connect your various peripheral devices. Switches are rated at 20A for a 12V system (10A for 24V) up to a maximum 45A per panel. The LED illumination is powered separately, so you can run it through a switch or dimmer too.

Features:
- Easy installation
- High quality switches
- Blue LED illumination

Specifications:
Switch Rating: 12VDC @ 20A, 24VDC @ 10A
Panel Rating: 45A
Electromechanical Switch

Switch Type

Rocker

Switch Function

Locking On/Off

Switch Connection

Spade Terminals

DC Voltage Rating

DC Voltage

12.0 V

DC Current Rating

DC current rating

45.0 A

In-built Illumination

Illumination Colour

Blue

Nominal Voltage

12.0V-12.0V

Connection

Spade Terminals

Type

5mm Standard LED

Illumination Position

Top

Product Dimensions

Width

70.0 mm

Height

179.0 mm

Weight

280.0 g

Packaged Dimensions

Packaged Dimensions

24.1cm(Length) x 11.6cm(Width) x 9.8cm(Height)

Manual for SZ1925

Discover more

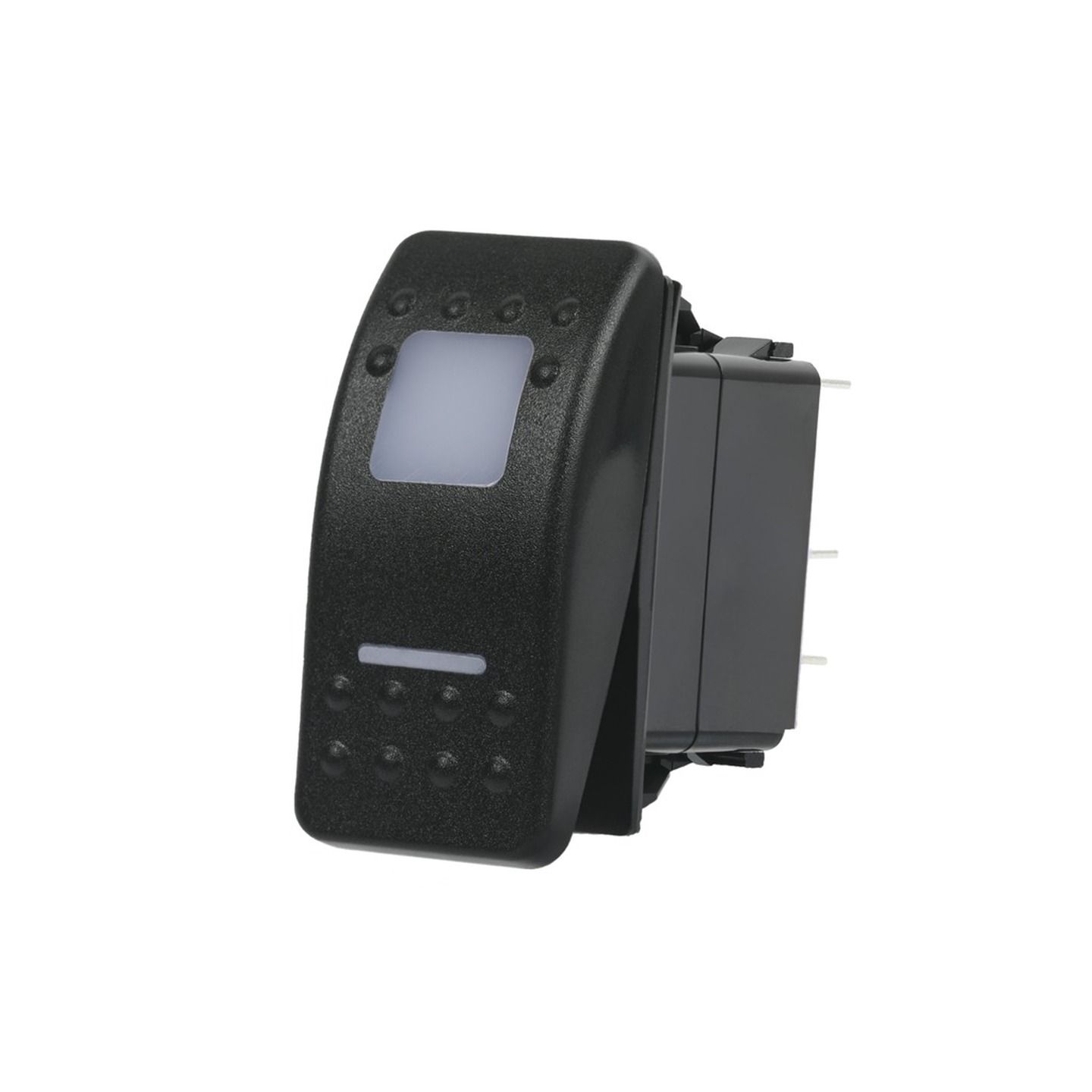

SPDT Dual Illuminated Rocker Switch with Labels and Interchangeable Covers - White
